Finally an easy way to send wireless sound direct to your Android phone or tablet. The tiny receiver just plugs discretely into your device. The body pack is tiny as well.
Why use an external camera and recorder when your Android device will do? Easily stream live to Facebook, Youtube, TikTok and Instagram with crystal clear professional sound.

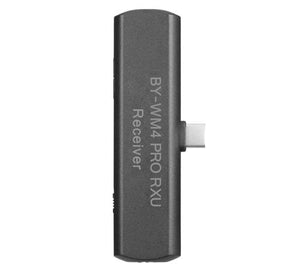

The system consists of a body-pack transmitter (TX4 Pro) with one omnidirectional lavalier microphone. The miniature receiver with a Type-c connector (BY-WM4 PRO RXU) plugs into your Android device. The ultracompact dual-channel receiver can allow users to work two transmitters at the same time.
RF Modulation: | GFSK (Gauss frequency Shift Keying) |
Frequency band: | 2.4GHz (2405-2478MHz) |
Frequency response: | 35Hz-14KHz±3dB |
Signal/Noise: | 84dB or more |
Distortion: | 0.05% or less (32Ω,1 KHz,65mW output) |
RF output level: | 3mW |
Earphone output level: | 32Ω,65mW |
Reception sensitivity: | -90dB +/- 3dB / 0dB=1V/Pa, 1kHz |
Audio input connector: | 3.5mm mini jack |
Operation range: | 60m (197ft) (without obstacle) |
Power requirements: | BY-WM4 PRO RXU: Supplied by USB Type-C device |
Plug: | BY-WM4 PRO RXU: USB Type-C Connector |
Consumption power: | Transmitter: 3V/70mA |
Receiver:3V/70mA | |
Dimensions: | Receiver: BY-WM4 PRO RXU: 82×30.7×12mm (3.2×1.2×0.5”) |
Transmitter: 45x70x35mm (1.8*2.8*1.4 inches) | |
Weight: | Receiver:BY-WM4 PRO RXD: 12g (0.4oz) |
Transmitter: 47g (1.7 oz) |
Boya BY-WM4 Pro K5
