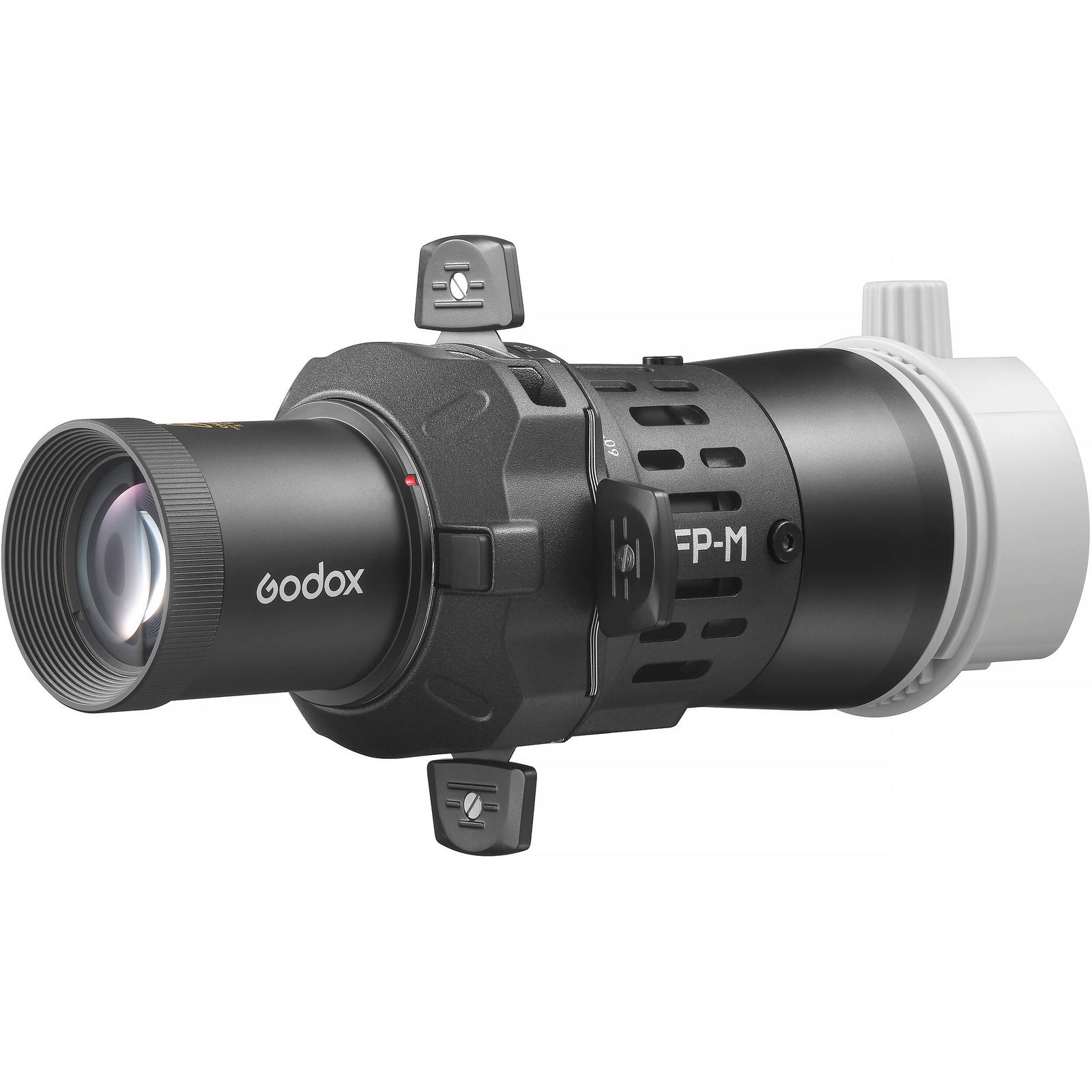

Godox FP-M Flash Projector Mini Kit (36°)
$218.95 CAD
FP-M
Project Patterns and Precise Shapes with Square-Head Flashes
The Godox FP-M Flash Projector Mini Kit 36° turns compatible Godox square-head flashes into a portable projection system for controlled shapes, patterns, and accents. Its included 36° lens provides useful medium coverage for portraits, product photography, and creative lighting in the studio or on location.
The Strobepro Difference
All Strobepro equipment comes with our in-house warranty and industry-leading support. We stock parts, we use our products, and we're here to help before and after the sale. Your FP-M ships from Canadian inventory and is backed by our Calgary-based team.

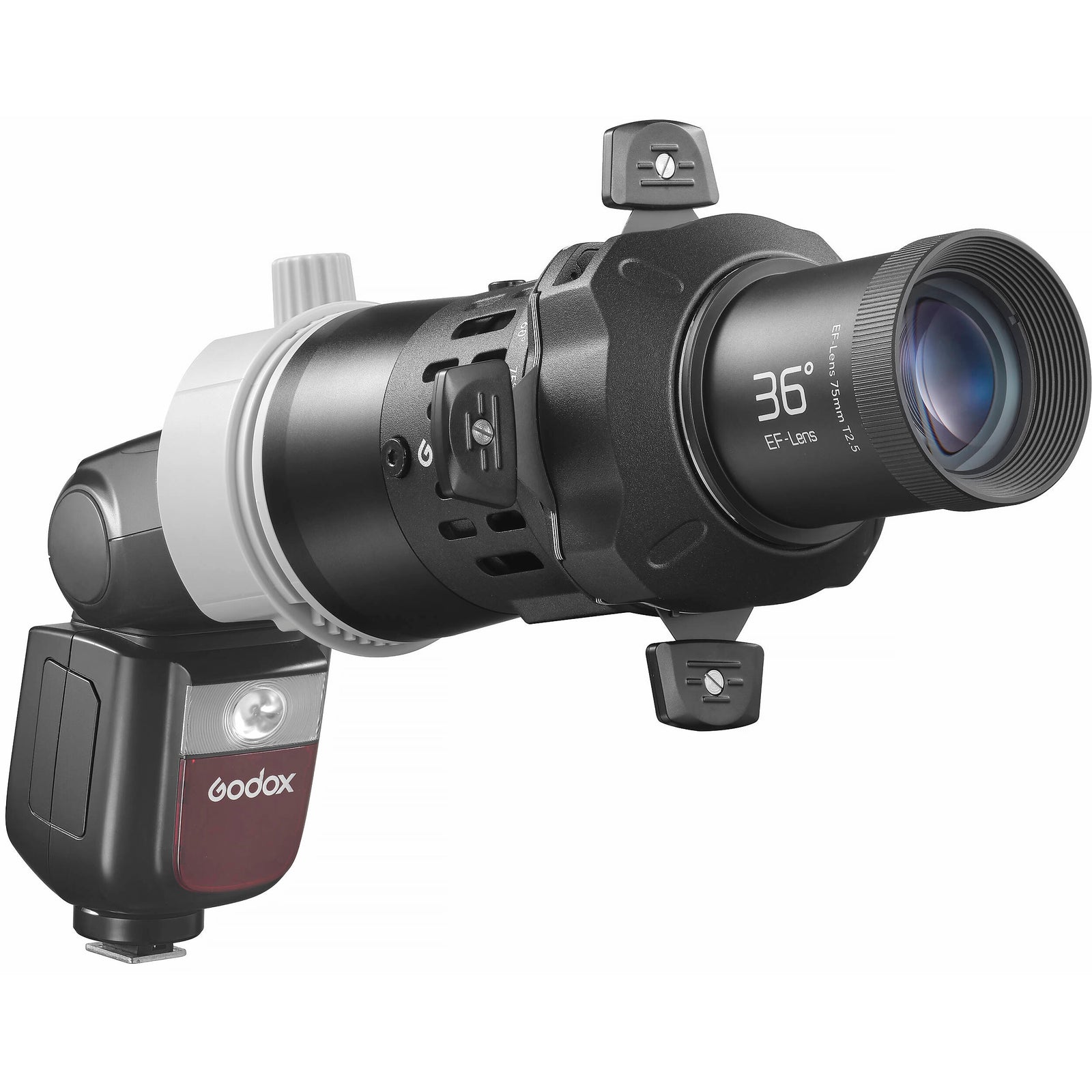

36° Lens for Versatile Medium Coverage
The included 36° projection lens balances image size with working distance, making it a practical all-purpose choice for pattern projection and shaped light. Optional 19° and 50° SP-series lenses let you change to a tighter or broader projection angle when the setup demands it.
Built-In Shutters Shape the Beam
Four integrated shutter blades cut the projected light into rectangles, triangles, narrow strips, and other geometric forms. This gives you direct control over where the flash lands and helps keep unwanted spill away from the rest of the frame.

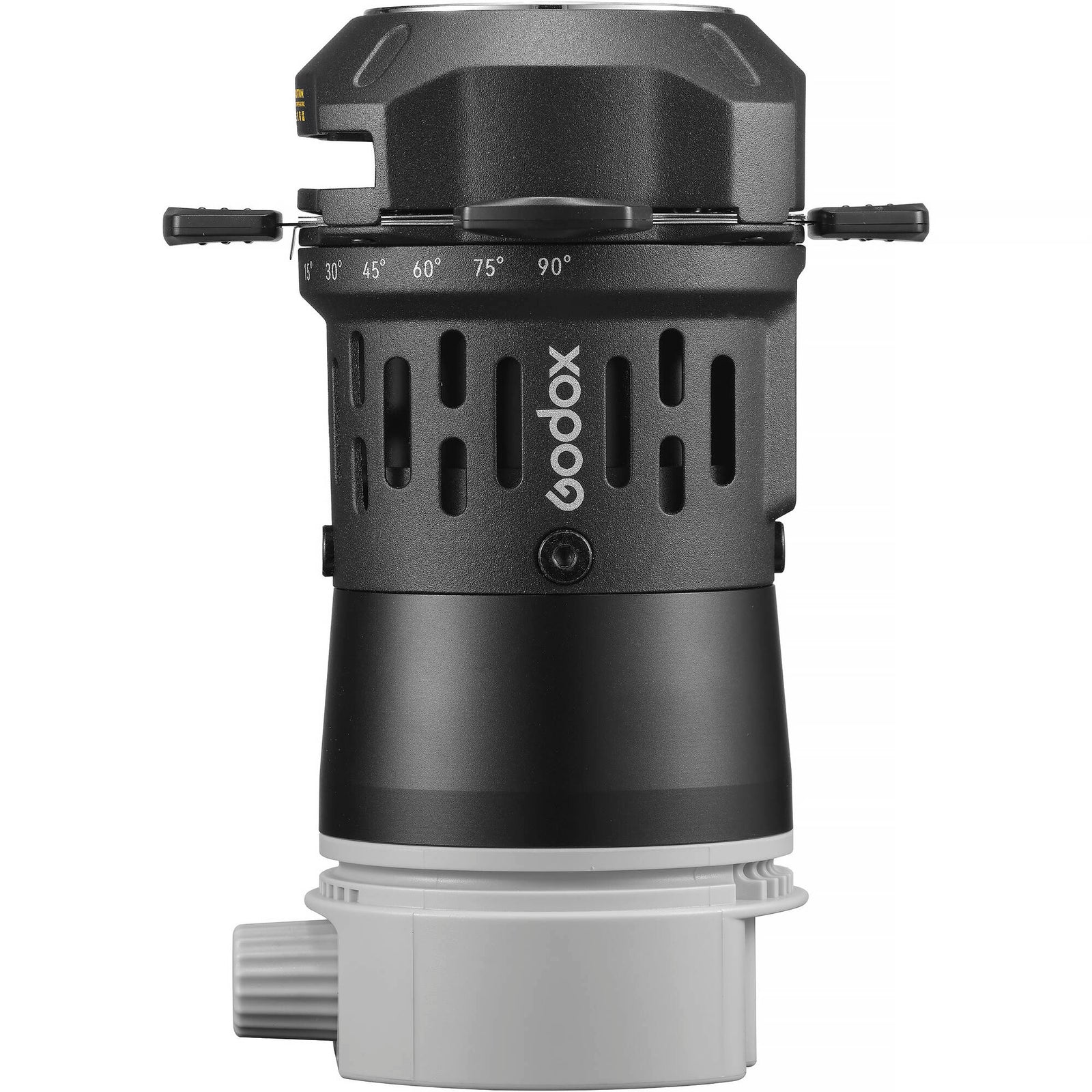

Rotate Gobos Through 360°
The shutter assembly rotates through 360°, allowing you to align a pattern or shaped beam without removing the gobo. The included SP-CF holder accepts size M gobos, and a gobo set is supplied so you can create textured effects immediately. Optional SA-09-001, SA-09-002, SA-09-003, and SA-09-004 gobo sets expand the available pattern choices.
Add Colour or Fine-Tune a Circular Spot
An optional SP-CTF colour frame accepts compatible colour filters, while the optional SP-ID iris diaphragm adjusts the diameter of a circular projection. The gobo holder and iris occupy the same accessory slot and cannot be installed together.

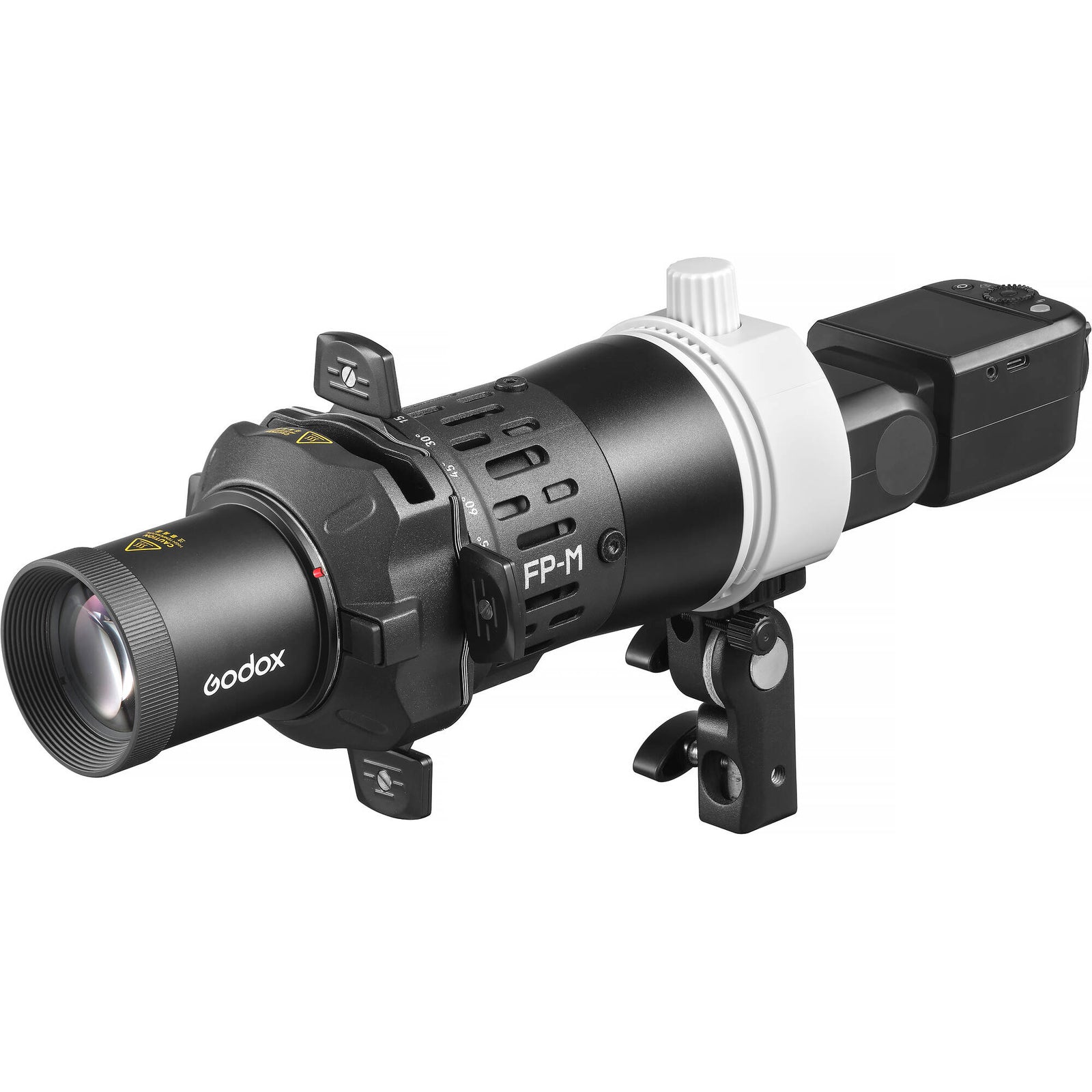

Designed for Compatible Godox Square-Head Flashes

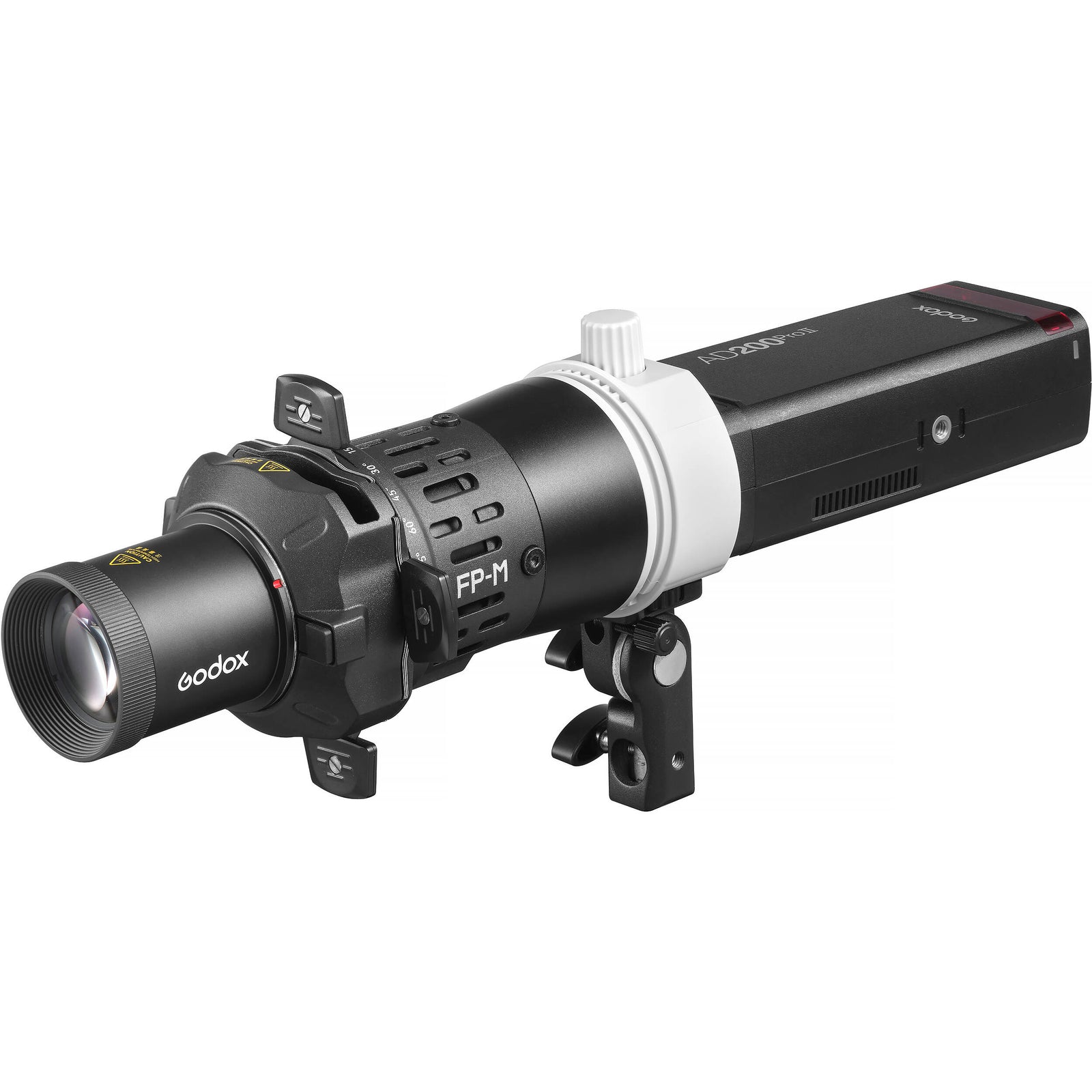

The FP-M fits compatible square-head models and flash heads, including the EC200, H200, H200 II, V860III, V860II, V850, V850 II, V850III, TT685, TT685 II, TT600, TT600S, TT520, TT520 II, TT520 III, TT560 II, V480, AD200Pro with the H200 square flash head, and AD200Pro II with the H200 II square flash head. Round-head flashes require the FP-R projector instead.
Real World Use
Project a window pattern behind a portrait, place a clean slash of light across a subject, add texture to a plain wall, or isolate a product with a defined highlight. The compact flash-based system is well suited to location work where a larger continuous-light projection fixture would be cumbersome.
Specifications
- Model: FP-M-36 Kit
- Product type: Flash projection attachment for compatible square-head flashes
- Included lens: 36° projection lens
- Interchangeable lens options: 19°, 36°, and 50° SP-series projection lenses
- Light shaping: Four integrated shutter blades
- Rotation: 360° rotatable shutter assembly
- Gobo compatibility: Size M gobos with SP-CF holder
- Accessory support: SP-CTF colour frame and SP-ID iris diaphragm
- Stand mounting point: 1/4-inch threaded mounting hole
- Projector dimensions without lens: 134 × 134 × 185.2 mm (5.28 × 5.28 × 7.29 in.)
- Projector weight without lens: Approximately 685 g
- 36° lens dimensions when retracted: 71 × 65 × 65 mm (2.80 × 2.56 × 2.56 in.)
- 36° lens weight: Approximately 280 g
- Construction: Metal
What's Included
- Godox FP-M square-head flash projector
- 36° projection lens
- Godox AD-E2 bracket
- Godox SP-CF gobo holder
- Godox MLP-GS gobo set
- Carry bag
- Instruction manual
Godox FP-M Flash Projector FAQ
Does the FP-M kit include a flash?
No. A compatible Godox square-head flash is required and sold separately.
Which flashes fit the FP-M?
Godox lists the EC200, H200, H200 II, V860III, V860II, V850, V850 II, V850III, TT685, TT685 II, TT600, TT600S, TT520, TT520 II, TT520 III, TT560 II, V480, AD200Pro with the H200 square head, and AD200Pro II with the H200 II square head as compatible.
Can I mount a round-head flash in the FP-M?
No. FP-M is made for compatible square-head flashes. Choose the FP-R for the supported Godox round-head models.
What is the difference between the 19°, 36°, and 50° lenses?
The angle controls beam spread and projection size. The 19° lens is the tightest, the included 36° lens provides medium coverage, and the 50° lens gives the broadest projection.
Can a camera lens be used on the projector?
No. Godox warns against substituting a camera lens because heat may damage it. Use the dedicated SP-series projection lenses.
Can I install the gobo holder and iris together?
No. Both use the same accessory slot, so one must be removed before the other is installed.
Does the projector require power?
No. The FP-M is a passive optical attachment. The connected flash supplies the light and determines output, triggering, and exposure control.
Are there heat limitations during repeated use?
Yes. Godox warns that the surface can become hot after more than 50 consecutive full-power flashes. Allow the projector to cool and use insulated gloves if it must be handled while hot.
