Strobepro Adjustable Wall Boom
$89.95 CAD
SP-AWB
Get Your Light Stands Off the Floor
The Strobepro Adjustable Wall Boom is a space-saving lighting support designed for studios where floor space matters. Mount your strobe, LED light, or other compatible equipment directly to the wall, then extend, pivot, and tilt the boom into position. When you're finished, simply fold it back toward the wall and reclaim your studio space.
The Strobepro Difference
Strobepro equipment is backed by our in-house warranty and industry-leading support. We stock parts, we use our products, and we're here to help before and after the sale.
Key Features
- Space-Saving Wall Mount - Eliminates the need for a light stand and folds toward the wall when not in use.
- 31.5" to 49.5" Extension - Adjust the boom length to position your light where you need it.
- 170° Side-to-Side Rotation - Swing the boom across a wide working area.
- Wide Tilt Range - Adjust from +88° to -86° for overhead, angled, and lower lighting positions.
- Reinforced Design - A brace arm supports the first boom section for a strong, stable setup.
- Two-Way Spigot - Position the included spigot in-line or perpendicular to the boom.
Reclaim Your Studio Space
Light stands are essential, but they take up valuable floor space and create another set of legs to work around. The Strobepro Adjustable Wall Boom moves your lighting support off the floor while keeping your light ready to use. It is especially useful in smaller studios, permanent shooting areas, product photography spaces, and anywhere you regularly position a light in the same general area.

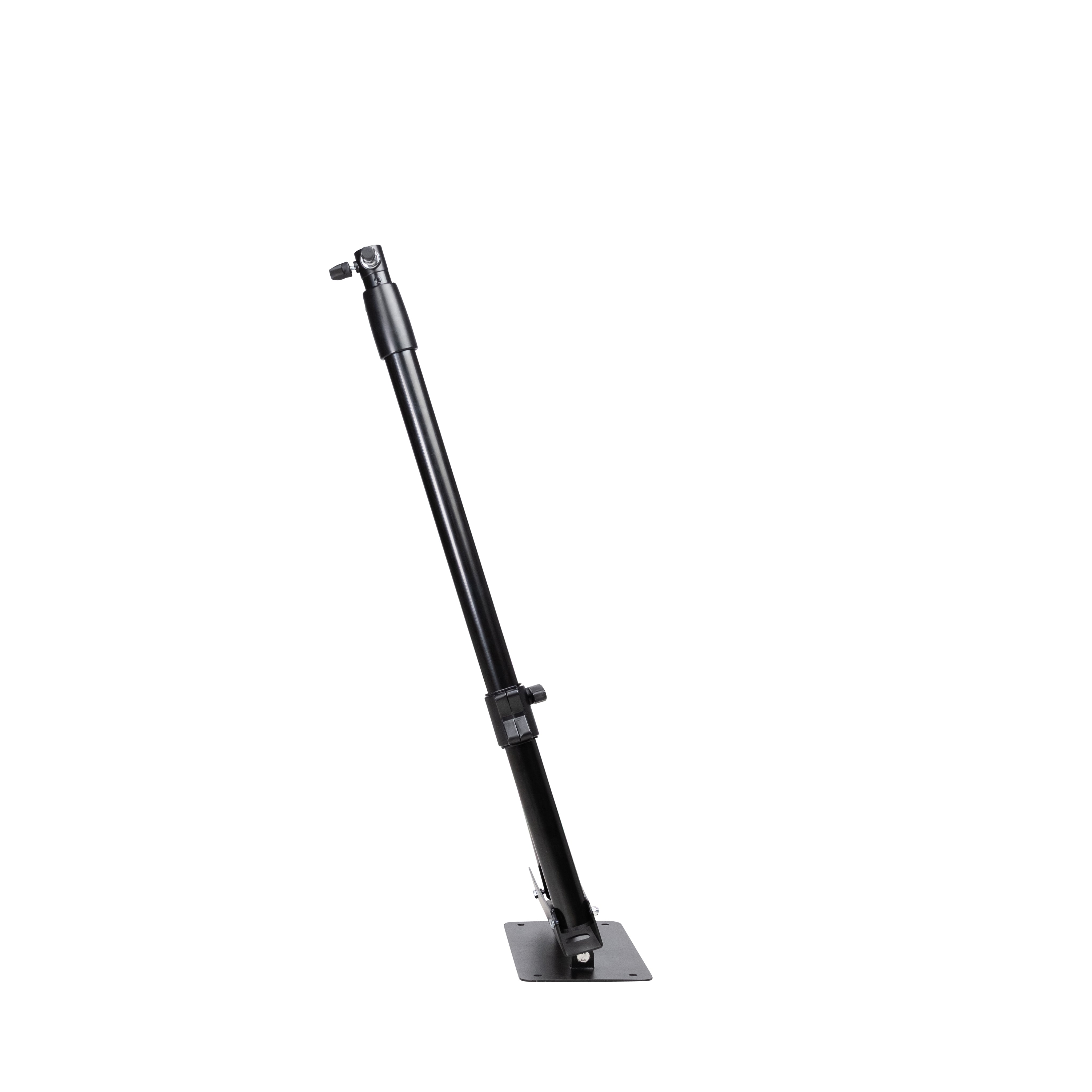

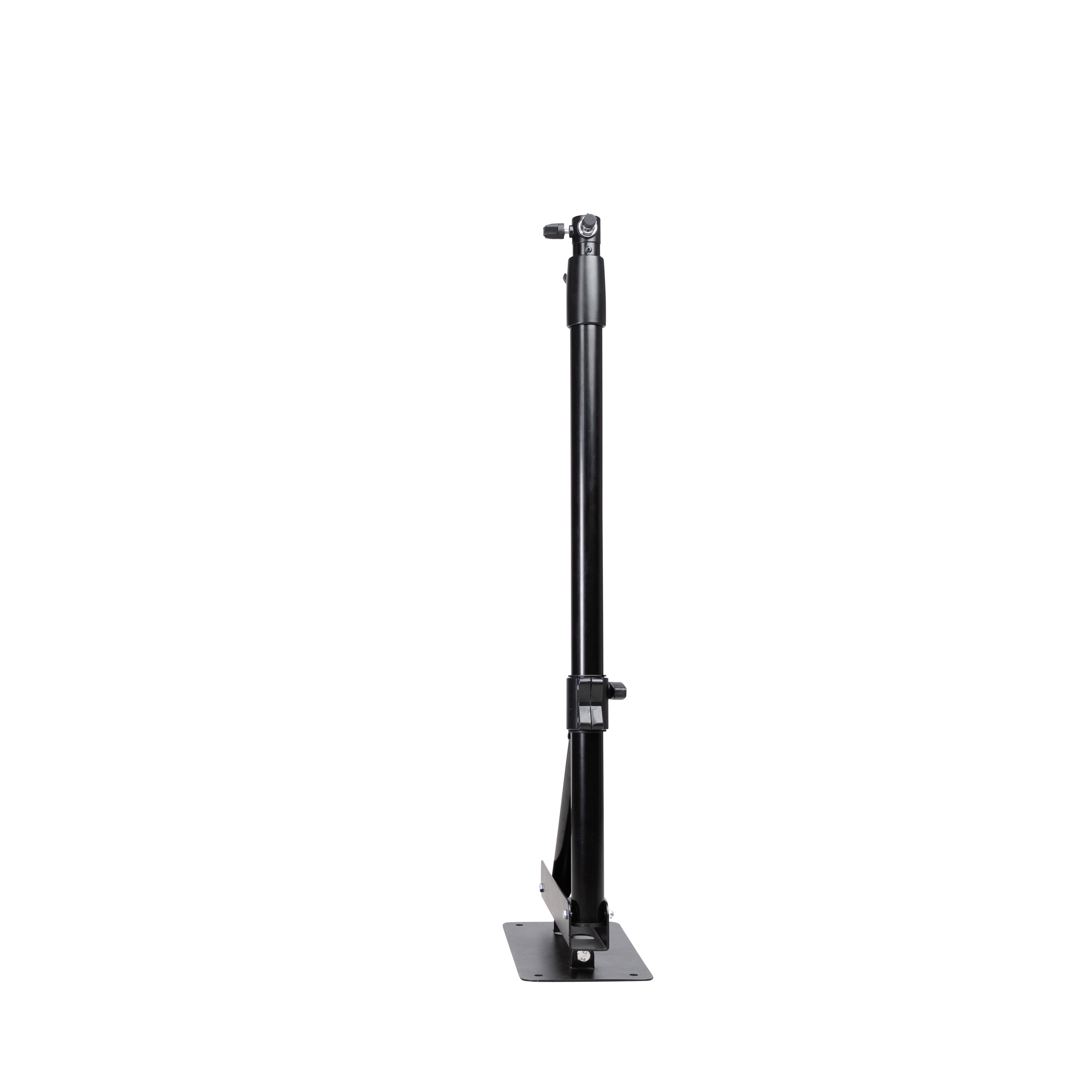

Pivot, Tilt and Extend

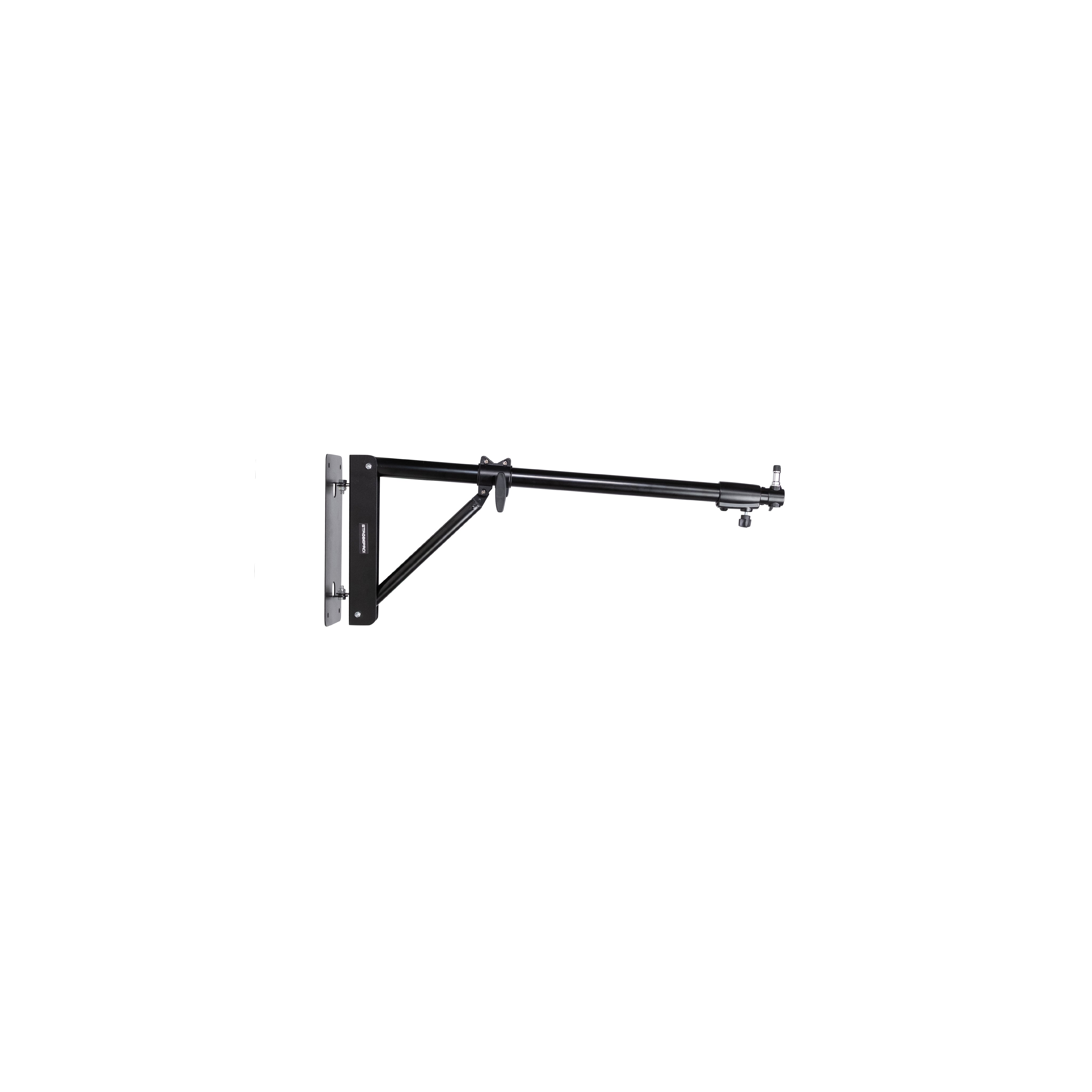

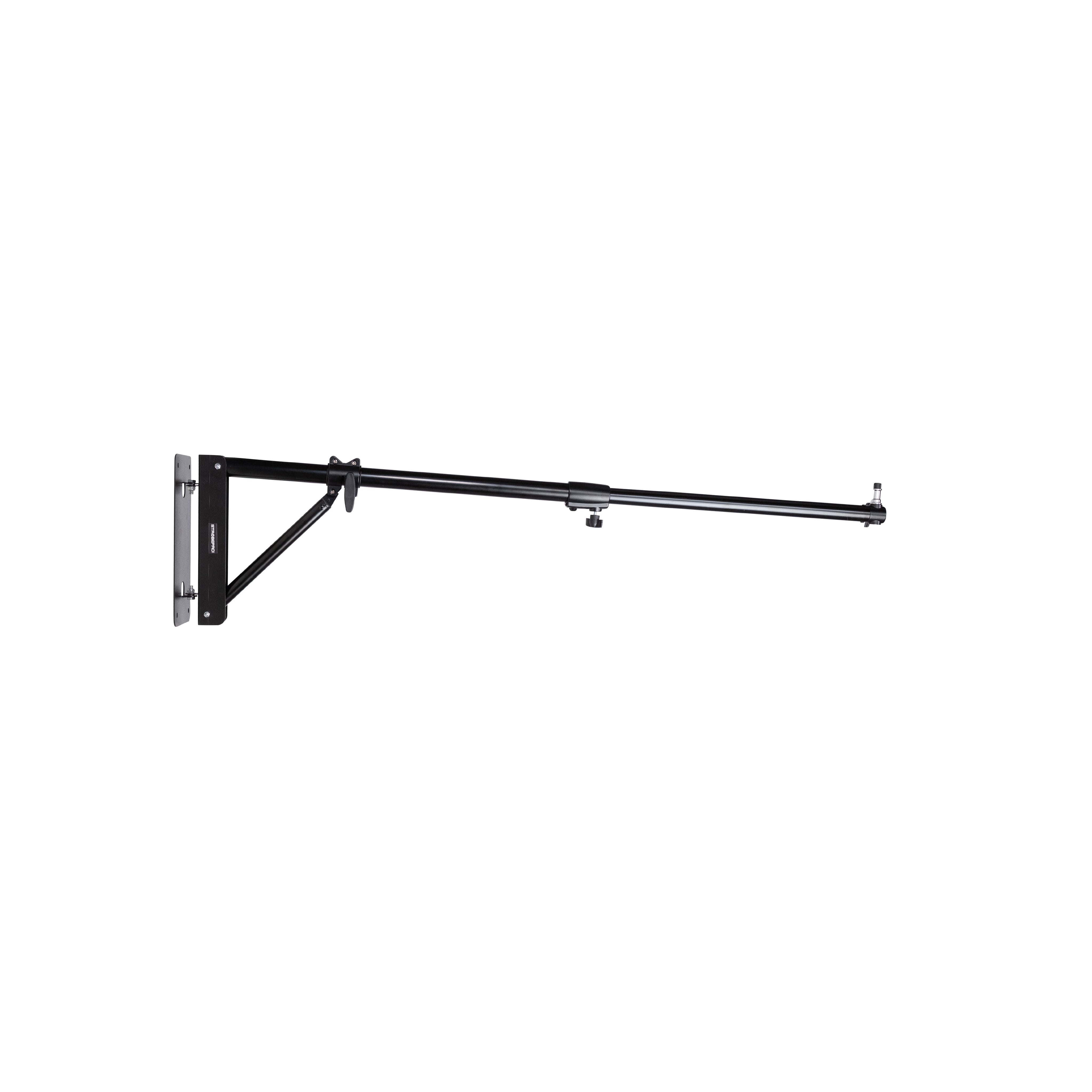

Being attached to the wall doesn't mean you're stuck with one lighting position. The boom extends from 31.5" to 49.5" from the wall, rotates through a 170° side-to-side arc, and provides a wide range of upward and downward tilt. This creates a large working area for positioning your light without moving a stand across the floor.

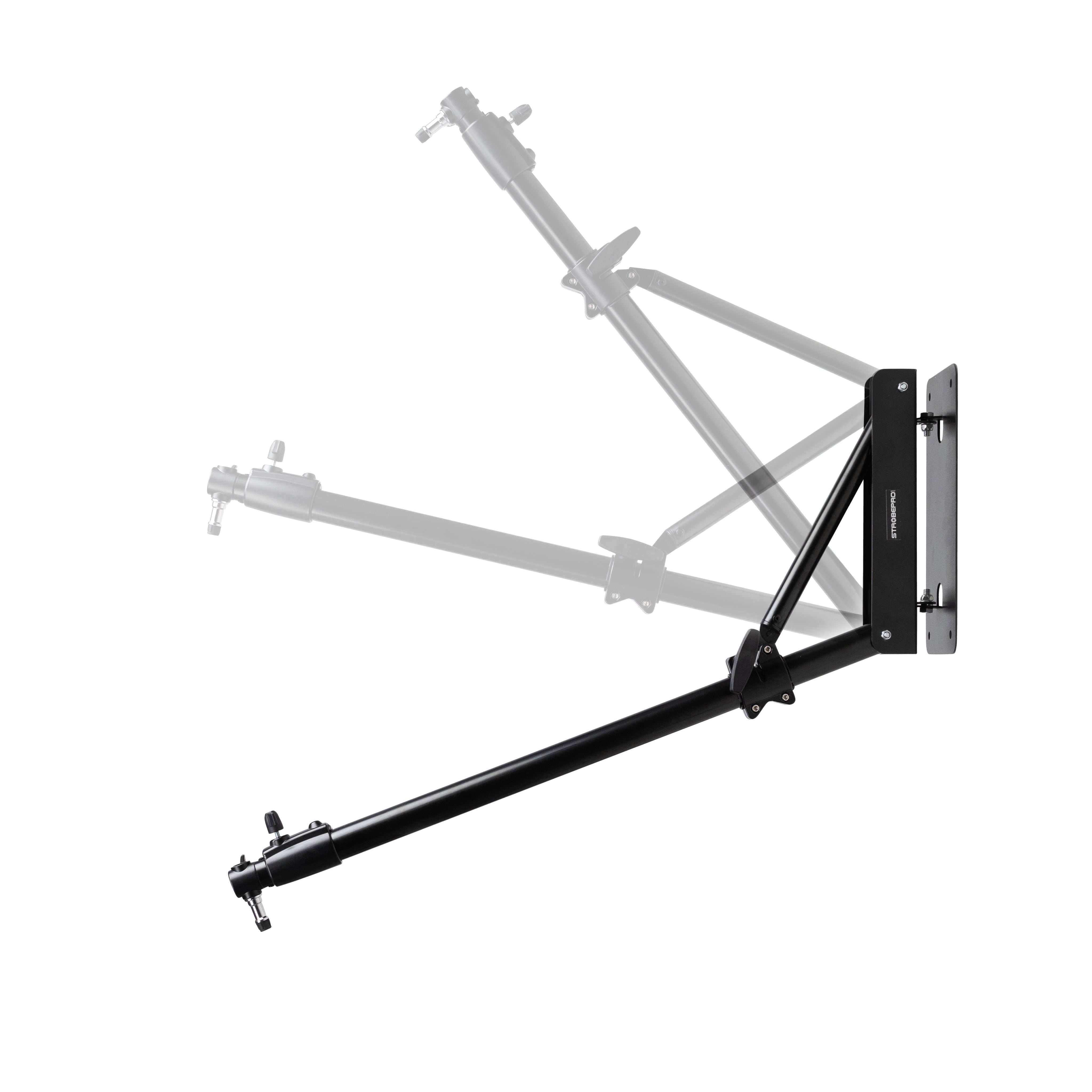

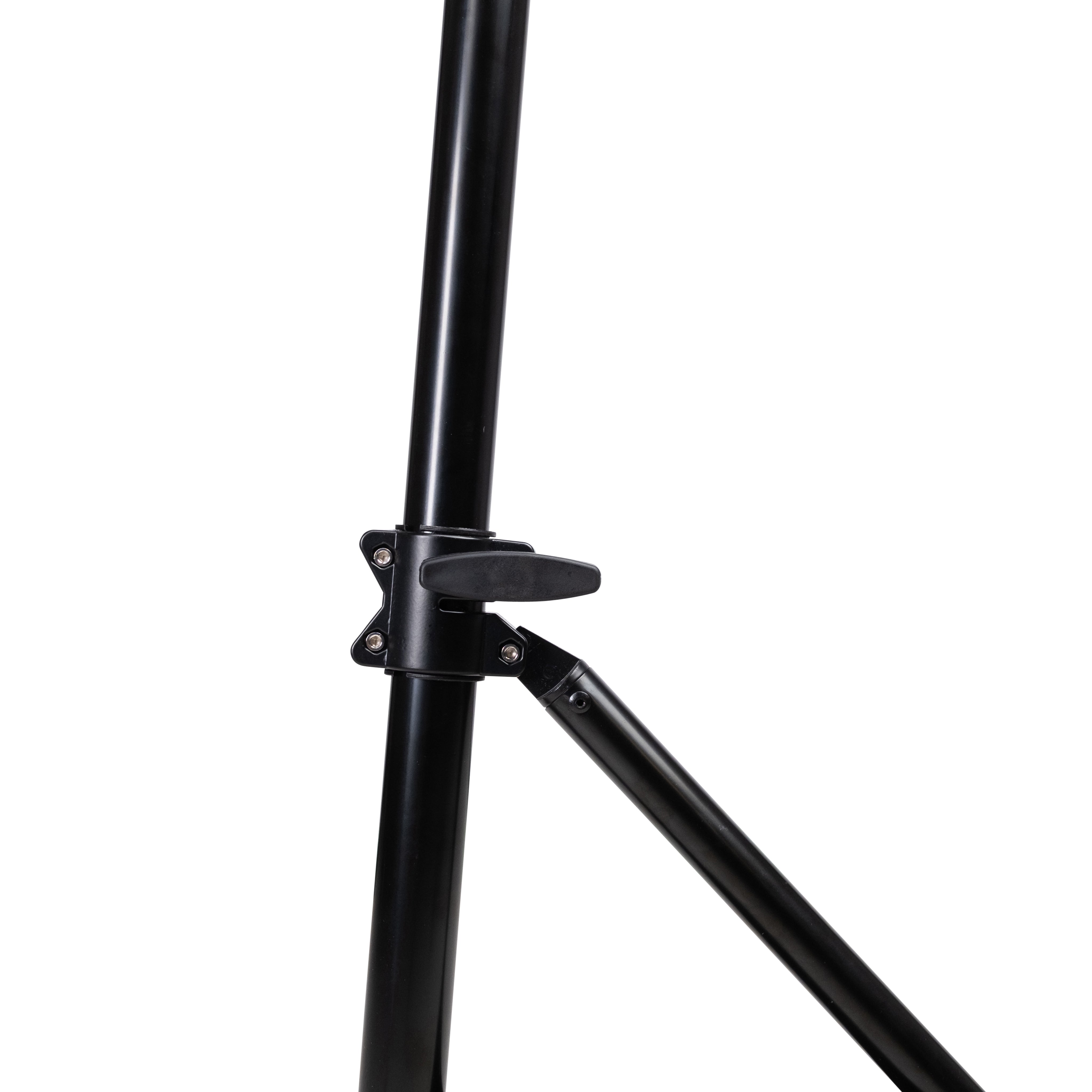

Strong Braced Construction
The first section of the boom is reinforced by a support brace to increase stability when equipment is mounted and the boom is extended. For the safest setup, the wall boom must be securely attached to suitable structural support using mounting hardware appropriate for the wall construction.

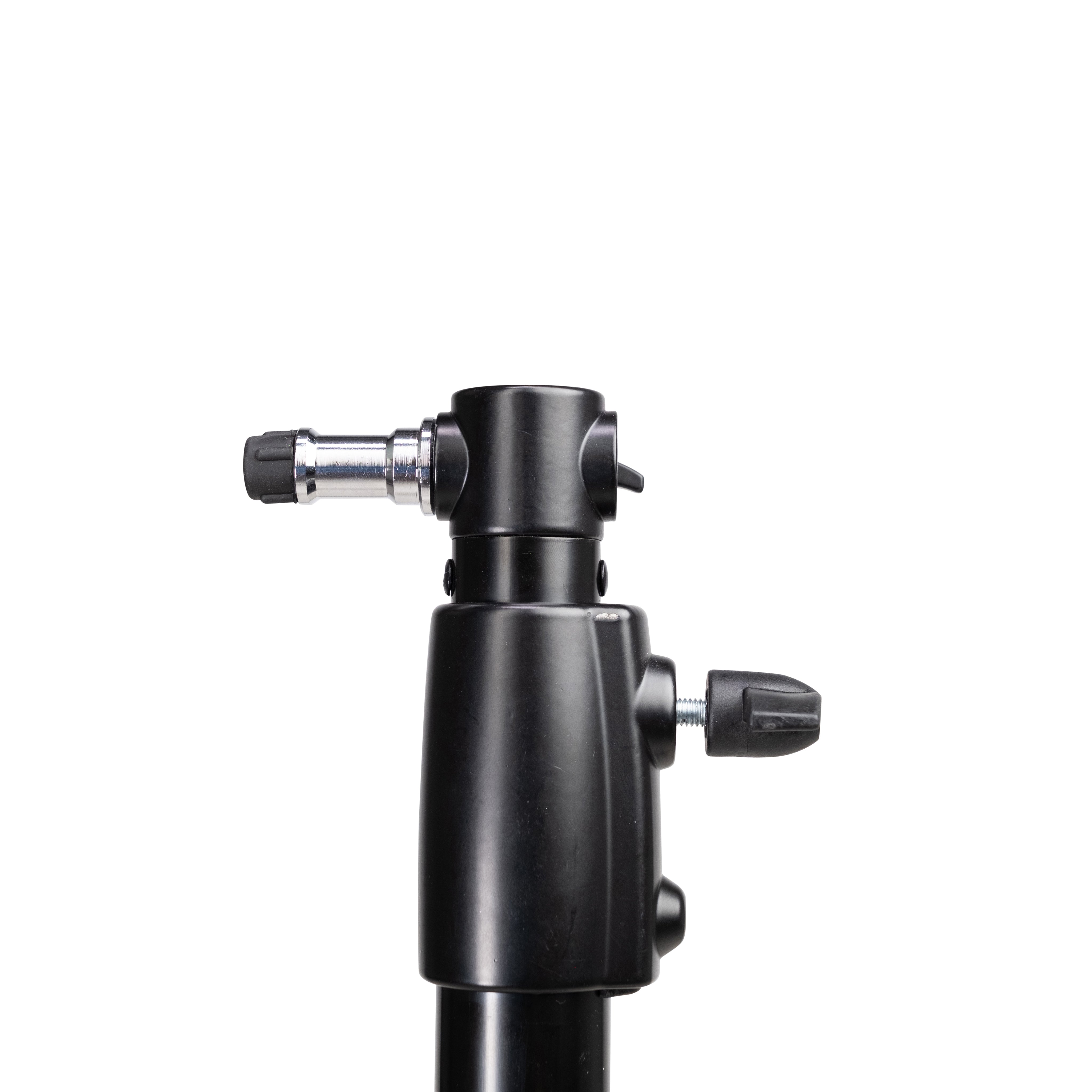

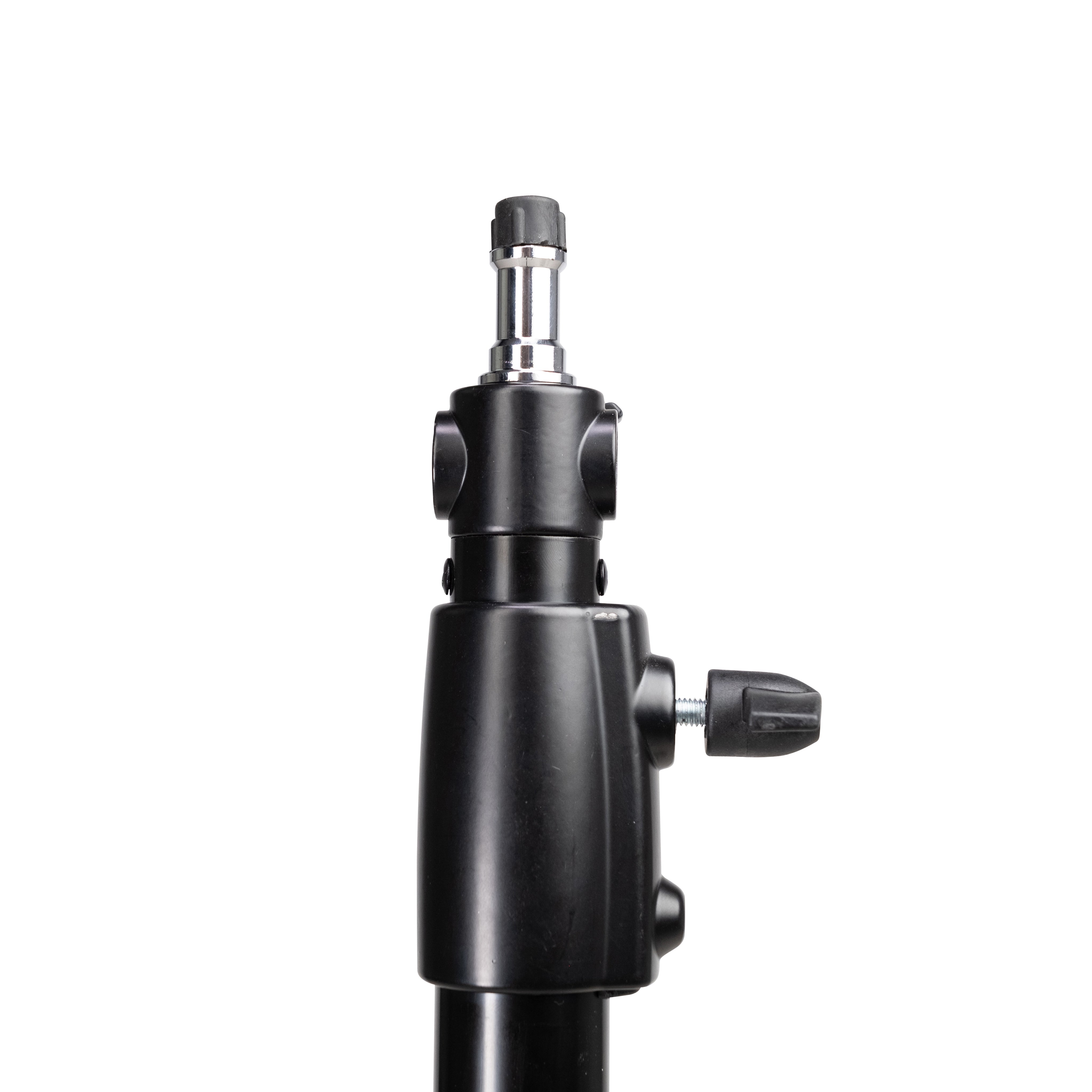

Two-Way Spigot
The included spigot can be installed in-line with the boom or perpendicular to it, giving you more flexibility when mounting strobes, LED lights, brackets, and other compatible equipment. The spigot includes standard 1/4" and 3/8" threaded connections.
Specifications
| Boom | |
|---|---|
| Boom Length from Wall | 31.5" to 49.5" (perpendicular, excluding spigot) |
| Side-to-Side Rotation | 170° |
| Upward Tilt | +88° |
| Downward Tilt | -86° |
| Mounting | |
| Accessory Mount | Standard spigot |
| Spigot Threads | 1/4" and 3/8" |
| Spigot Orientation | In-line or perpendicular |
| Wall Mounting Plate | 14 cm W x 30 cm H (5.5" W x 11.8" H) |
| Mounting Hole Spacing | 10 cm W x 26 cm H (3.9" W x 10.2" H), centre-to-centre |
| Wall Mounting Hardware | Not included |
| Physical | |
| Weight | 5.4 lb |
Included
1 x Strobepro Adjustable Wall Boom
1 x Two-Way Spigot
Note: Wall mounting hardware is not included.
FAQ
How far does the wall boom extend?
The boom extends from 31.5" to 49.5" from the wall when positioned perpendicular to the wall. This measurement does not include the spigot.
How much can the wall boom rotate?
The boom has a 170° side-to-side rotation arc. It can also tilt up to +88° and down to -86°, giving you a large range of possible lighting positions.
How much weight can the Strobepro Adjustable Wall Boom hold?
Safe working capacity depends on several factors, including how far the boom is extended, its angle, the weight and balance of the equipment, the wall construction, and the mounting hardware used. For this reason, we do not recommend choosing a payload based on a single maximum weight figure. Always mount the boom securely into appropriate structural support and reduce the load as the boom is extended. Using standard strobes and modifiers is no problem.
Can I mount a strobe or LED light directly to the boom?
Yes. The included standard spigot is designed for compatible strobes, LED lights, brackets, and other photography or video equipment. The spigot can be positioned in-line or perpendicular to the boom depending on your setup.
Does the wall boom fold away when I'm not using it?

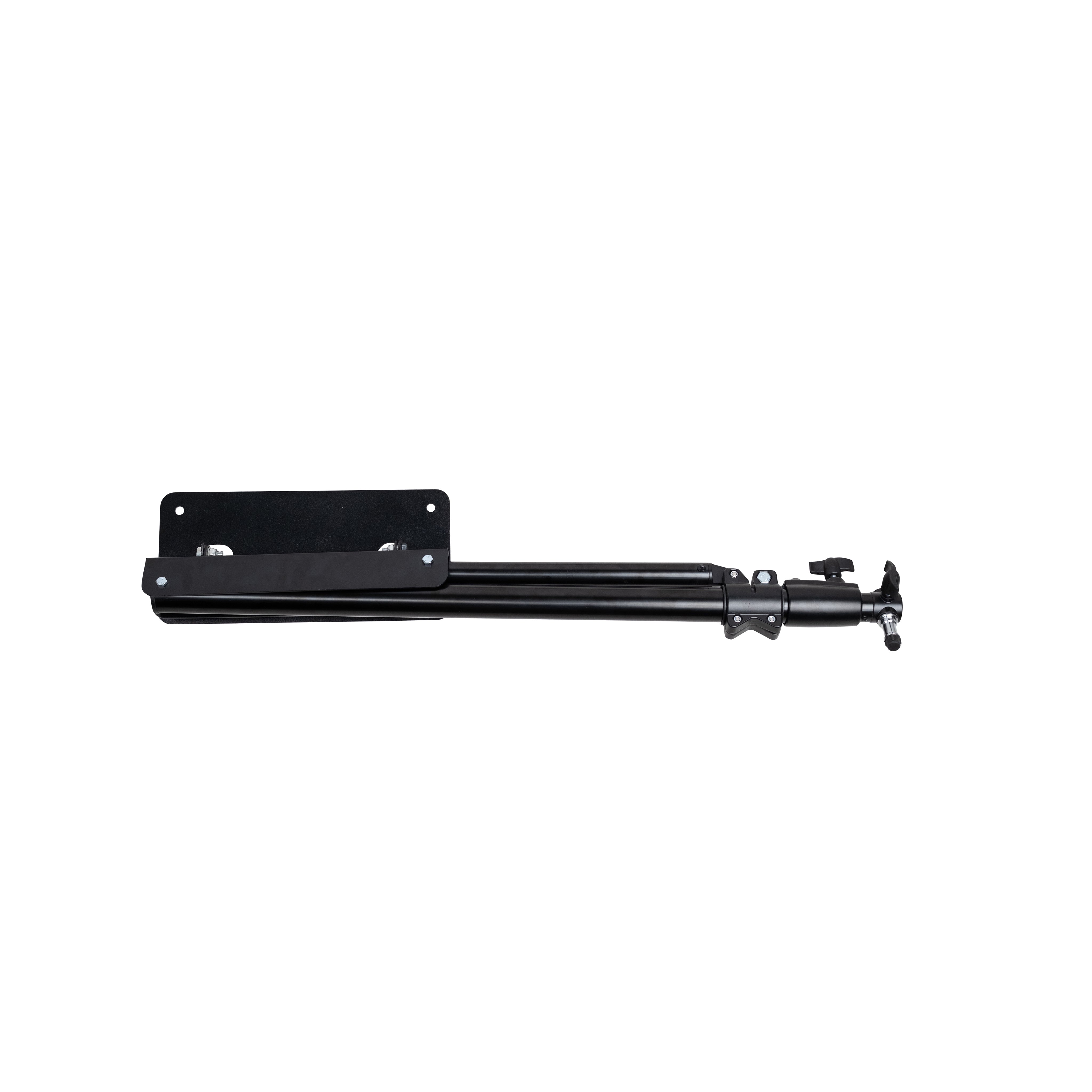

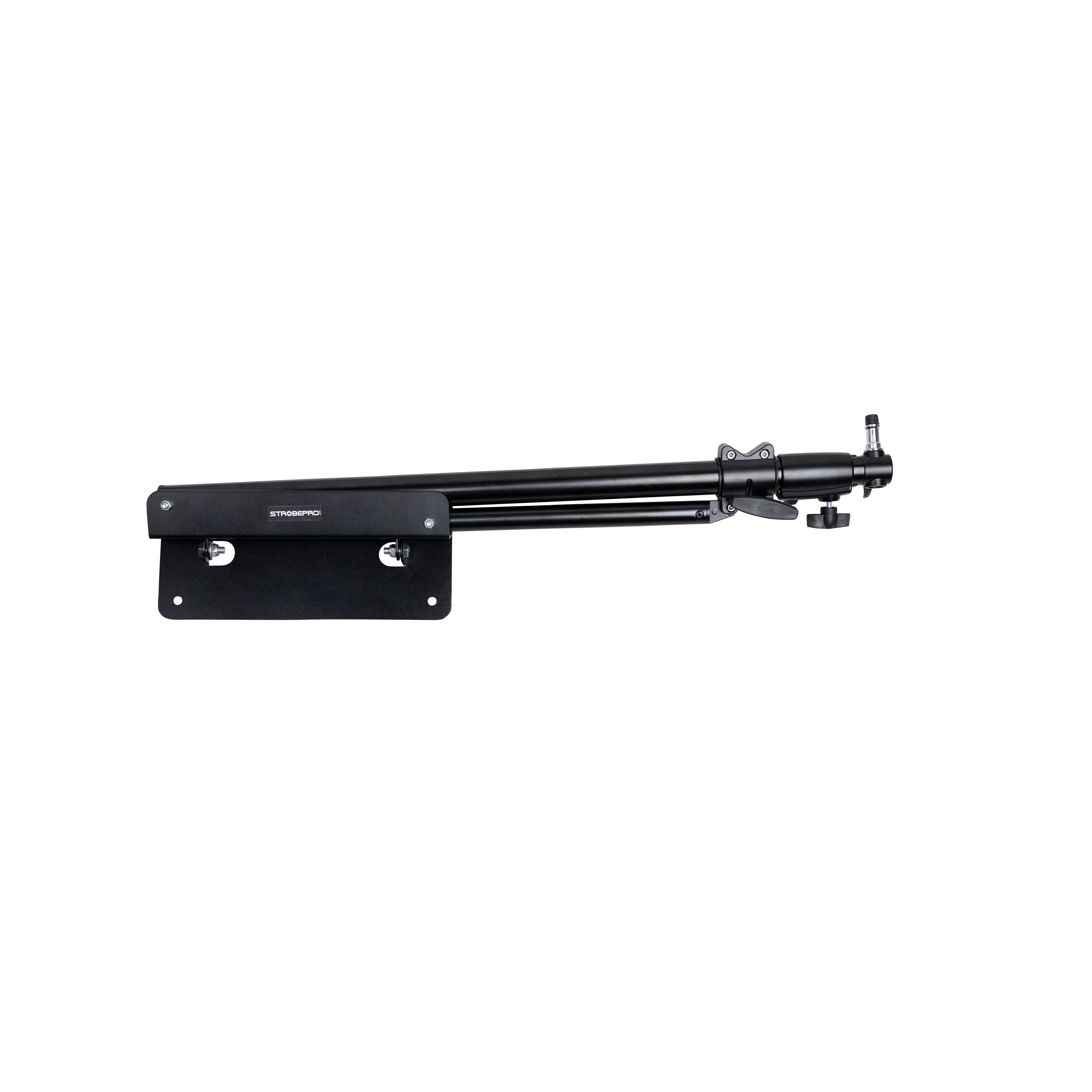

Yes. One of the main advantages of a wall boom is that it can swing back toward the wall when not in use, freeing up valuable studio floor space.
What size is the wall mounting plate?
The wall mounting plate measures 14 cm wide x 30 cm tall (5.5" x 11.8"). The mounting holes are spaced 10 cm apart horizontally and 26 cm apart vertically (3.9" x 10.2"), measured centre-to-centre.
Is wall mounting hardware included?
No. Wall mounting hardware is not included because the correct fasteners depend on the structure and material of your wall. The boom should be attached to suitable structural support using hardware appropriate for the installation.
Can I install the wall boom into drywall?
The boom should not rely on drywall alone for structural support. It should be securely fastened to appropriate structural support behind the wall or another suitably engineered mounting surface. The correct installation method will depend on your wall construction and the equipment you intend to mount.
What are the 1/4" and 3/8" threads on the spigot for?
The two standard thread sizes allow you to attach a wide range of photography and video accessories. This makes the boom useful for more than just lights, including compatible brackets and other studio equipment.
